Mid Tower Gaming Case
LEADER 2 BK
•Comprehensive Compatibility: Supports E-ATX motherboards, 425mm GPUs, 420mm radiators, 245mm PSUs, and 185mm air coolers for versatile hardware configurations.

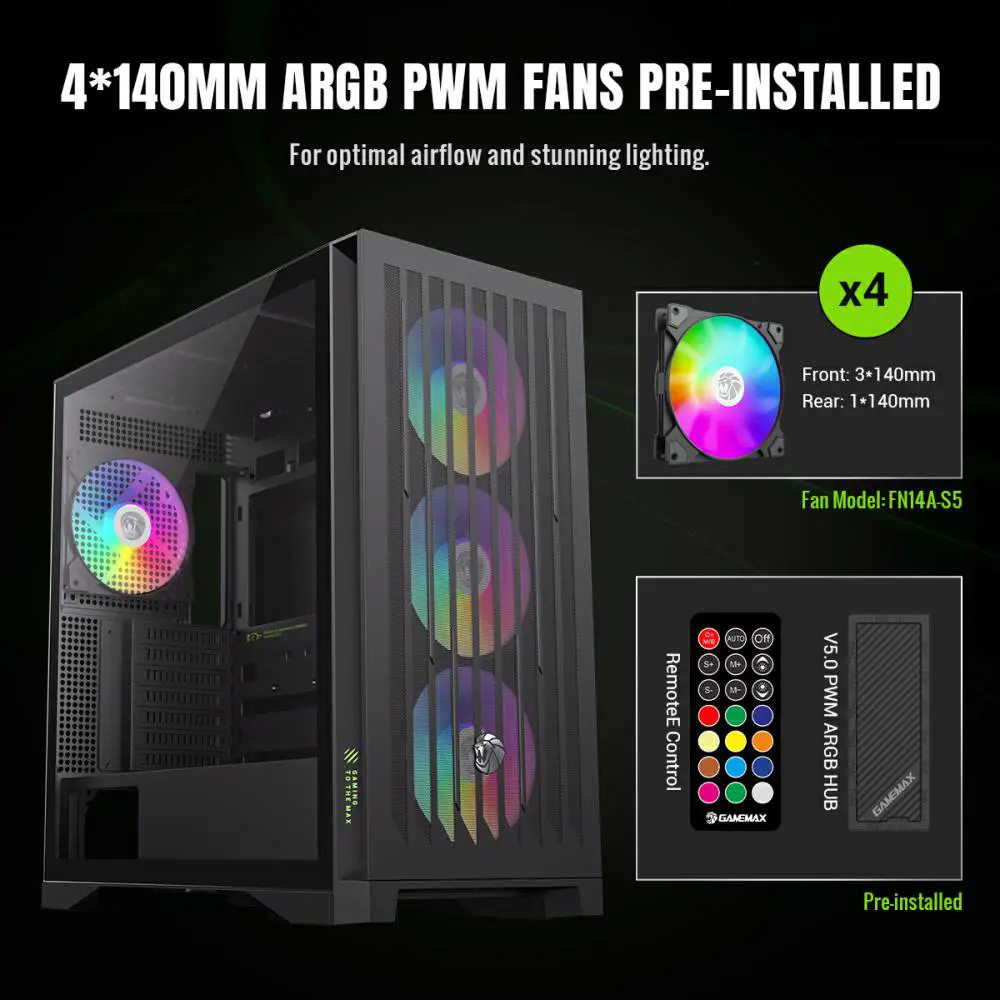

•Advanced Cooling Matrix: Offers 9×120mm or 8×140mm fan mounts with 4 pre-installed 140mm ARGB PWM fans and a dedicated controller.
•Future-Proof Connectivity: Features Type-C Gen 2, dual USB 3.0 ports, and BTF motherboard compatibility for modern cable management.

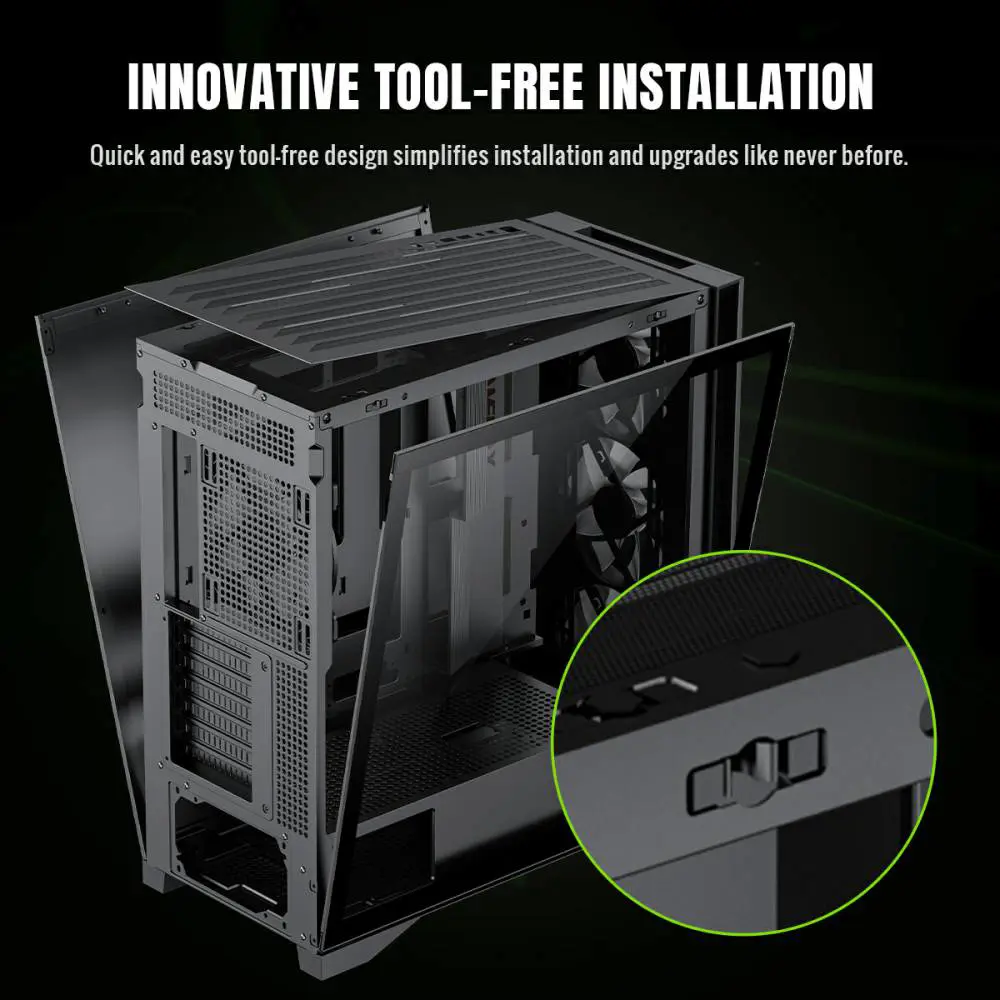

•Effortless Building: Incorporates a tool-free design, vertical GPU support, and hidden cable routing with a detachable cover.
•Lion-Inspired Design: Showcases bold claw-mark mesh panels, a tempered glass side panel, and customizable ARGB lighting.
Showcases a bold lion-inspired theme with claw mark details on the mesh and other parts, ensuring superior airflow and striking aesthetics.
EFFICIENT COOLING AIRFLOW

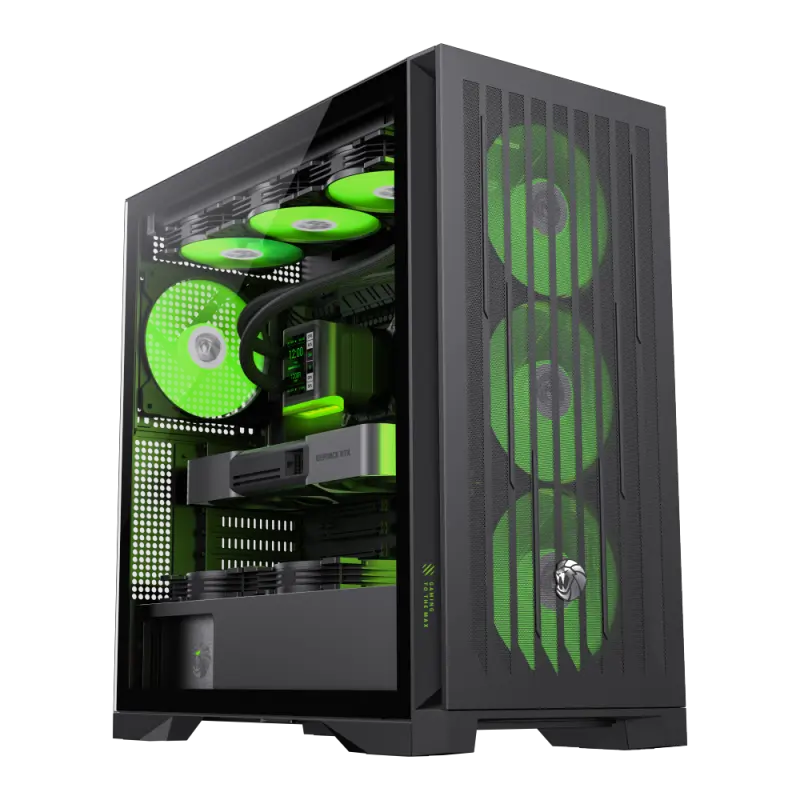

Supports both air and liquid cooling with excellent performance. Features a separated power supply compartment for efficient cooling. Vertical airflow channel quickly dissipates heat, ensuring stable computer operation.
SUPPORTS BTF MOTHERBOARDS

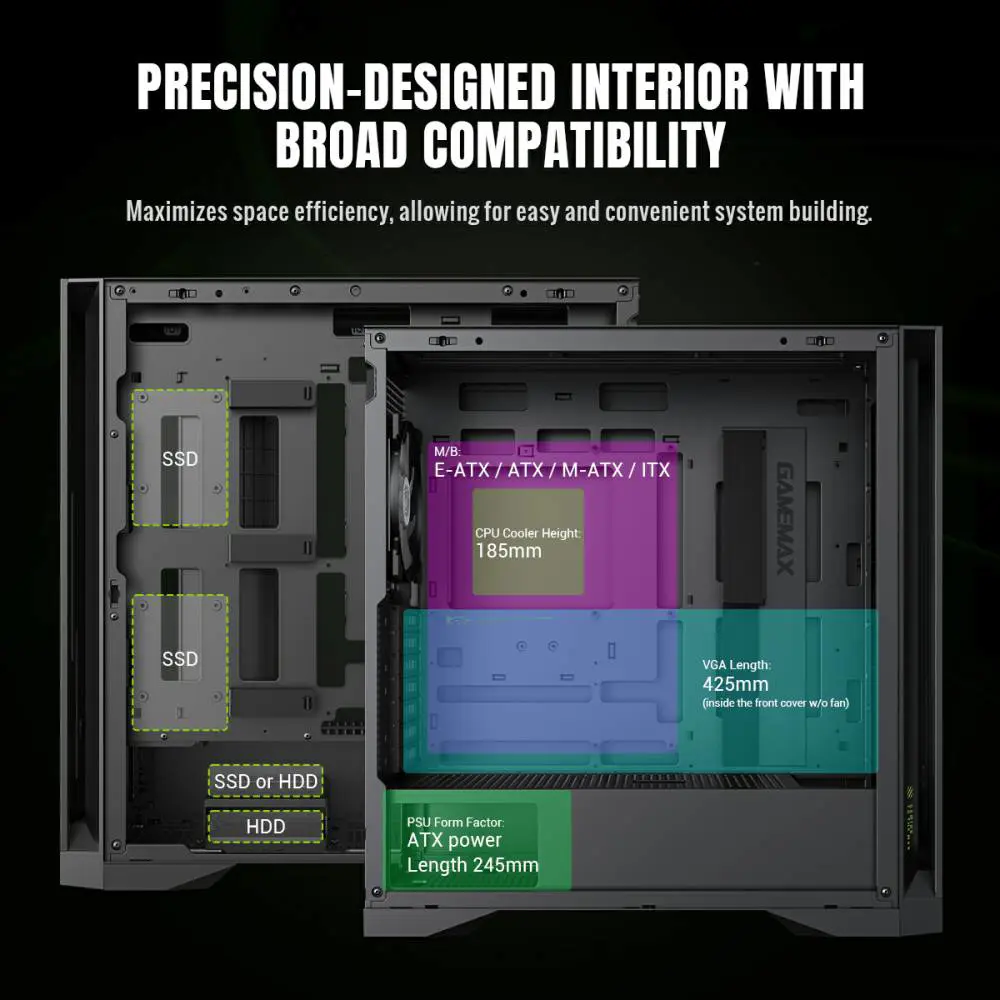

Supports E-ATX/ATX/M-ATX/ITX motherboards. Supports ATX/M-ATX BTF motherboards with 32mm cable space for a clean build.
Provides the option for vertical GPU installation to showcase your graphics card in style.
PCl-E Card Slots
|
| Form Factor: | E-ATX |
| Chassis: | SPCC :0.6-0.7mm |
| PSU Form Factor | Bottom/ATX |
| M/B Form Factor: | E-ATX、ATX、M-ATX、ITX |
| ATX、M-ATX Support BTF |
| Front Panel: | metal Mesh(Tool-free) |
| Top Panel: | metal Mesh(Tool-free) |
| Side Panel: | Left: | Tempered Glass(Tool-free) |
| Right: | Metal cover(Tool-free) |
| External Drive Bay(s): | 5.25”(ODD): | *0 |
| 3.5”: | *0 |
| Internal Drive Bay(s): | 3.5" (HDD): | *2 |
| 2.5" (SSD): | *3 |
| 2*3.5HDD+2*2.5SSD or 1*3.5HDD+3*2.5SSD |
|

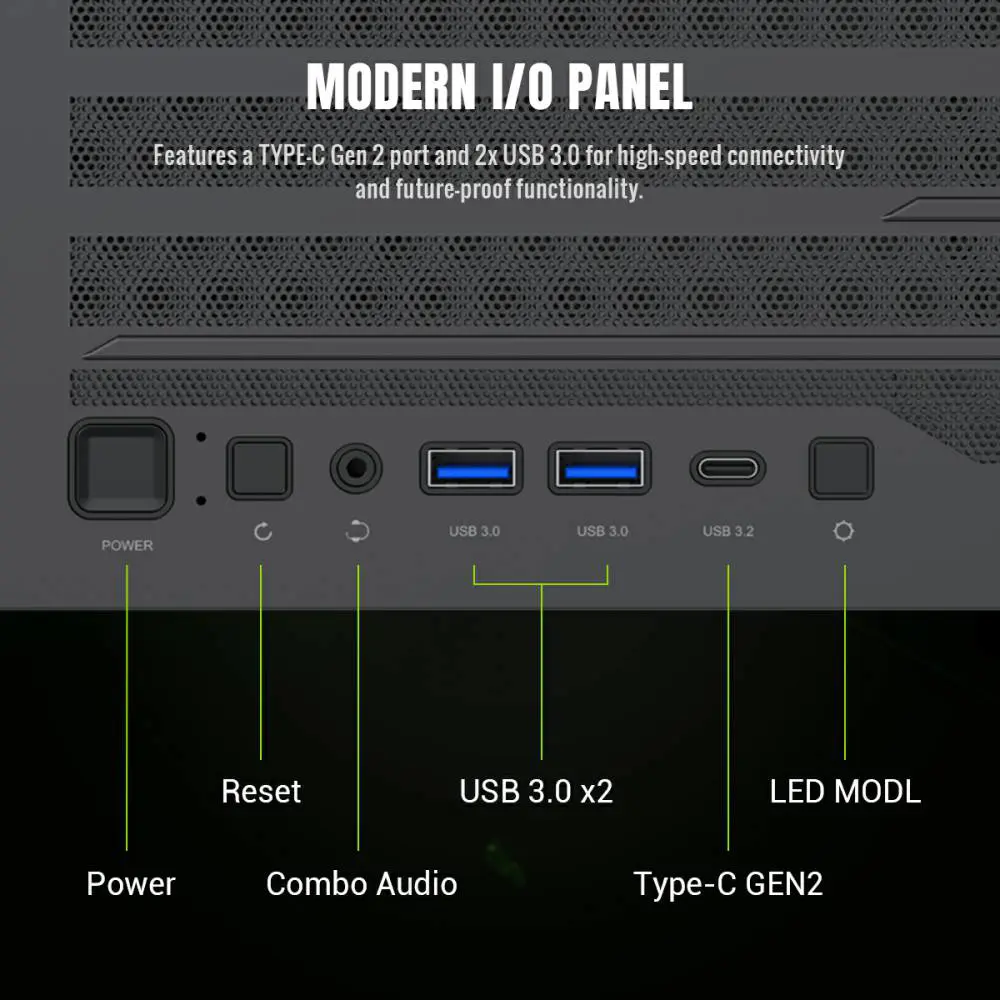

| I/O: | Buttons: | *3 (POEWR, RESET, LED MODL) |
| USB 2.0 Port(s): | *0 |
| USB 3.0 Port(s): | *2 |
| Type C Port(s): | *1(TYPE-C GEN2) |
| Audio Support: | *1(Combo AUDIO) |
| Card Reader (Support): | *0 |
| P-Lock： | *0 |
| RGB Controller： | *1(V5.0 PWM ARGB HUB) |
| Controller Max Fans: | *6 |
| RGB Controller max. LED strips： | *6 |
| Remote (IR or RF)： | *1 |
| Cooling Fan Support: | Front: | 3x140mm( FN14A-S5) |
| Top: | 3x120mm ,2x140mm (Fan optional) |
| Rear: | 1x140mm( FN14A-S5) |
| Bottom: | 0
|
| M/B Cover： | 0 |
| PSU Cover： | 2x120mm ,2x140mm (Fan optional |
| Water Cooling Support |
|
|
| (Radiator Size): | Front: | 120mm, 140mm,240mm,280mm,360mm,420mm |
| Top: | 120mm, 140mm,240mm,280mm,360mm |
| Rear: | 120mm, 140mm |
| M/B Cover： | *0 |
| Dust Cover: | Removable iron mesh on top, pull-out dust mesh on the bottom |
|
| Slots: | *7/5 |
|
| Carton & Logo: | GAMEMAX |
|
| Dimensions: | Chassis: | (L)440*(W)235*(H)480mm |
| Full Case (Inc Fascia): | (L)476*(W)235*(H)500mm |
| Carton: | (L)558*(W)309*(H)565mm |
| Net Weight(kg): | 9.2 |
| Gross Weight(kg): | 10.6 |
| VGA Support: | up to 425mm(inside the front cover w/o fan) |
|
| Vertical Graphics Support | YES |
|
| CPU Cooler Height: | up to 185mm |
|
| SPS Length: | up to 245mm |
|
| Cable Management Depth: | 32mm | |
